60227 IEC02

You are here:

Hook Up Wire | Building Wire | 60227 IEC02 PVC Flexible Electrical Wire

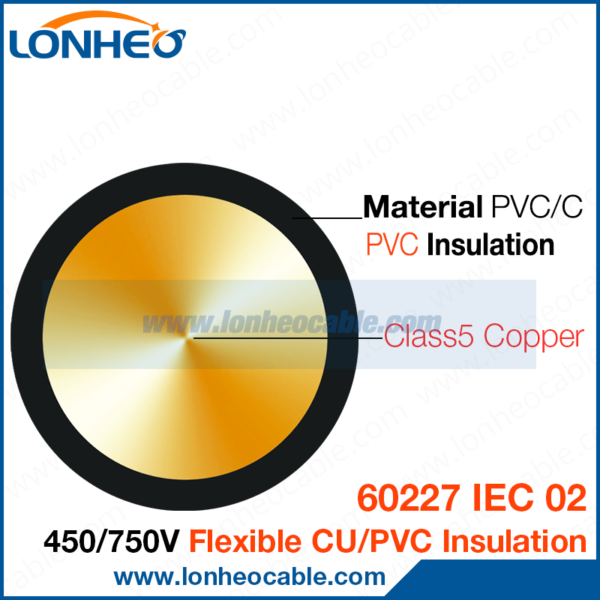

IEC02 450V-750V Hook Up Wire Class5 Construction

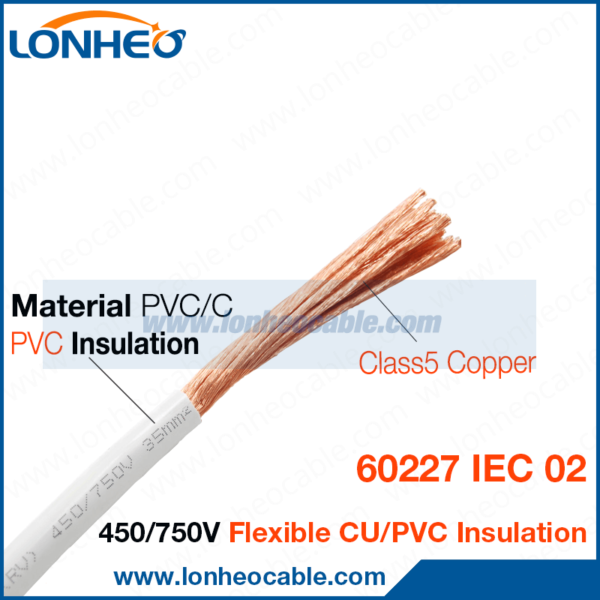

60227 IEC 02 Hook Up Wire for home wiring | PVC Flexible Electrical Wire

How we make 60227 iec02 450/750V

1. Purchase Copper Bar/Rod
2. Copper Drawing
3. Insulation Extruded
4. Coiling
5. Packaging

BASIC INFORMATION

Code Name

60227 IEC 02

Rated Voltage (Uo/U)

450/750V

Cable Structure

Flexible CU/PVC Insulation

CONSTRUCTION

Conductor

Number of conductors:1

The conductors shall comply with the requirement given in IEC 60228 for class 5

Insulation

PVC(Polyvinyl Chloride) Type PVC/C according to IEC

CHARACTERISTICS

Conductor temperature

Maximum conductor temperature in normal use: 70℃

Installation temperature

Ambient temperature under installation shall not be below 0℃

Minimum bending radius

The bending radius of cable: (D-Diameter of cable)

D≤25mm——————≥4D

D＞25mm——————≥6D

Nominal Cross Sectional Area of Conductor	Class of conductor	Nominal Insulation Thickness	Max.Overall Diameter	Max.D.C.Resistance at 20 ℃ (Ω/km)		Min.Insulation Resistance at 70 ℃
(mm2)	/	(mm)	(mm)	Plain	Metal-coated	(Ω/km)
1.5	5	0.7	3.4	13.3	13.7	0.01
2.5	5	0.8	4.1	7.89	8.21	0.009
4	5	0.8	4.8	4.95	5.09	0.007
6	5	0.8	5.3	3.3	3.39	0.006
10	5	1	6.8	1.91	1.95	0.0056
16	5	1	8.1	1.21	1.24	0.0046
25	5	1.2	10.2	0.78	0.795	0.0044
35	5	1.2	11.7	0.554	0.565	0.0038
50	5	1.4	13.9	0.386	0.393	0.0037
70	5	1.4	16	0.272	0.277	0.0032
95	5	1.6	18.2	0.206	0.21	0.0032
120	5	1.6	20.2	0.161	0.164	0.0029
150	5	1.8	22.5	0.129	0.132	0.0029
185	5	2	24.9	0.106	0.108	0.0029
240	5	2.2	28.4	0.0801	0.0817	0.0028
