60227 IEC06

You are here:

Hook Up Wire | Building Wire | 60227 IEC06 PVC Flexible Electrical Wire

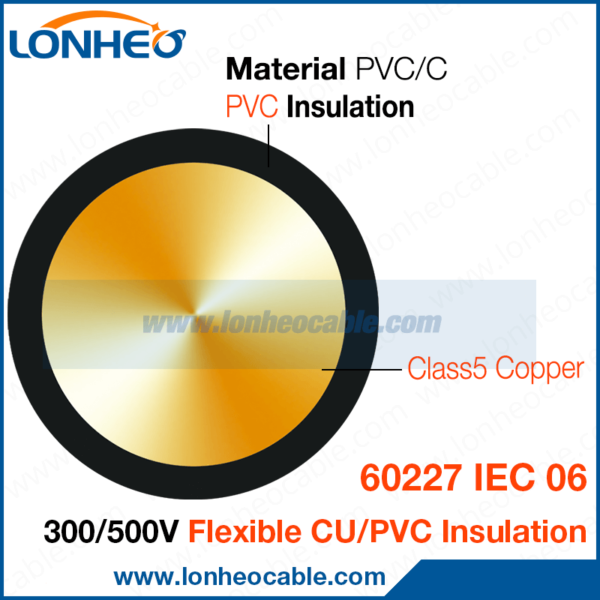

IEC06 300V-500V Hook Up Wire Class5 Construction

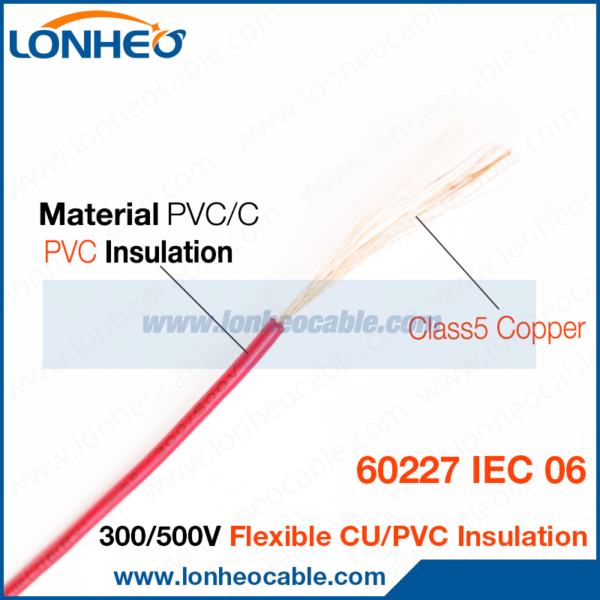

60227 IEC 06 Hook Up Wire for home wiring | Copper PVC Flexible Wire

How we make 60227 IEC06 300/500V

1. Purchase Copper Bar/Rod
2. Copper Drawing
3. Insulation Extruded
4. Coiling
5. Packaging

BASIC INFORMATION

Code Name

60227 IEC 06

Rated Voltage (Uo/U)

300/500V

Cable Structure

Flexible CU/PVC Insulation

CONSTRUCTION

Conductor

Number of conductors:1

The conductors shall comply with the requirement given in IEC 60228 for class 5

Insulation

PVC(Polyvinyl Chloride) Type PVC/C according to IEC

CHARACTERISTICS

Conductor temperature

Maximum conductor temperature in normal use: 70℃

Installation temperature

Ambient temperature under installation shall not be below 0℃

Minimum bending radius

The bending radius of cable: (D-Diameter of cable)

D≤25mm——————≥4D

D＞25mm——————≥6D

Nominal Cross Sectional Area of Conductor	Class of conductor	Nominal Insulation Thickness	Max.Overall Diameter	Max.D.C.Resistance at 20 ℃ (Ω/km)		Min.Insulation Resistance at 70 ℃
(mm2)	/	(mm)	(mm)	Plain	Metal-coated	(Ω/km)
0.5	5	0.6	2.5	39	40.1	0.013
0.75	5	0.6	2.7	26	26.7	0.011
1	5	0.6	2.8	19.5	20	0.01
